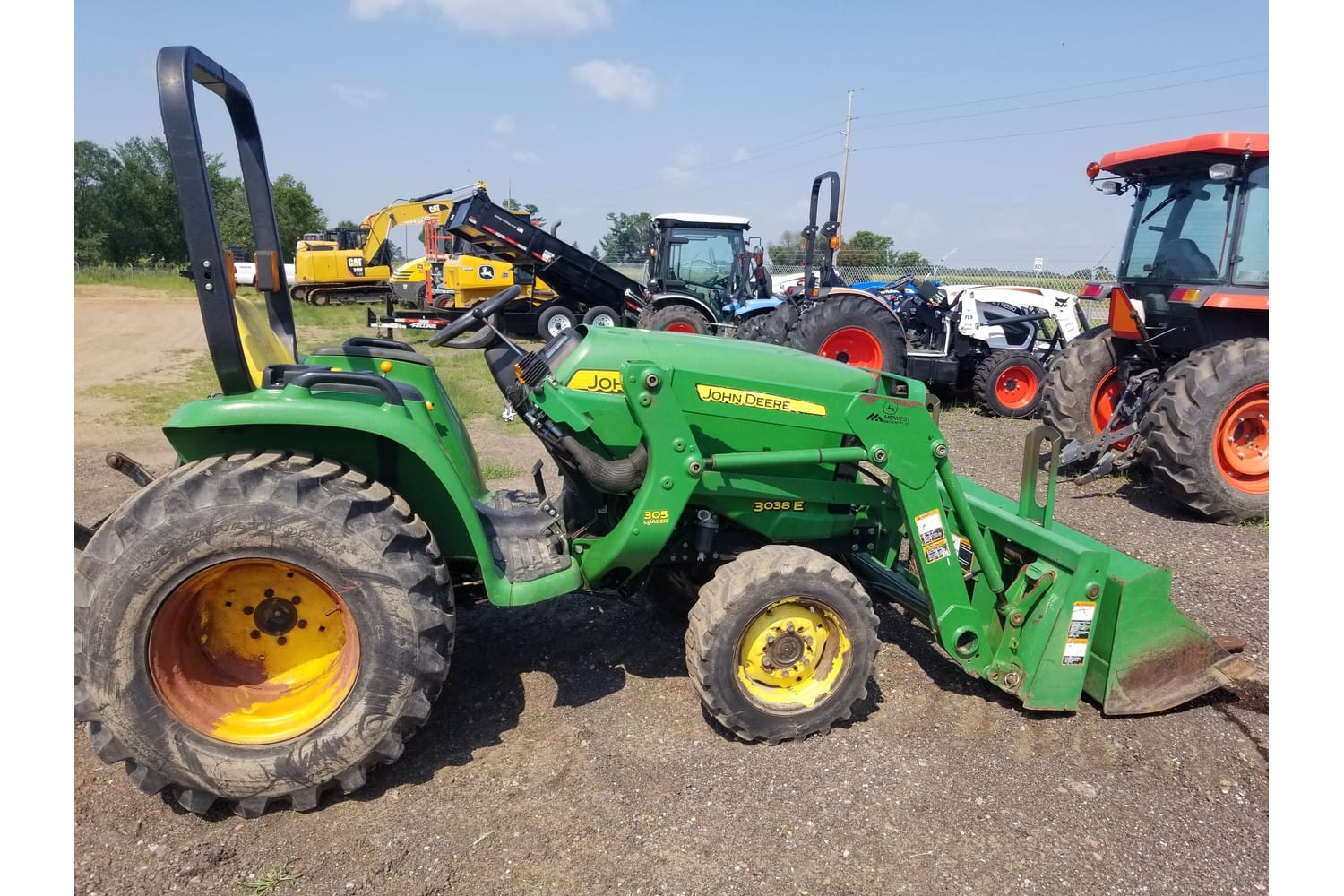

2010 John Deere 3038E

Description

John Deere 3038E Compact Utility Tractor W / Loader : 36 HP , 4 WD , 2 Ranger Hydro Transmission . Have Pallet Forks to fit $700.00 more SPECS: Engine power (gross) SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm Power take-off (PTO) power 22.4 kW 30 hp Steering hydraulics 15.0 L/min 4.0 gpm Implement hydraulics 20.2 L/min 5.3 gpm Hitch type Category 1 Lift capacity, 24-in. behind link arms 615 kg 1356 lb Standard transmission; forward/reverse Hydrostatic transmission (HST) Cruise control Optional Approximate shipping weight (open-station; cab) Open operator station (OOS): 1210 kg 2668 lb Cab: Not applicable Wheelbase 1593 mm 62.7 in. Key Specs Family FYDXL1.57TDA EYDXL1.57TDA GYDXL1.57TDA Manufacturer Yanmar Engine model 3TNV86CT-NJT2 Engine power (gross) SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm Power take-off (PTO) power 22.4 kW 30 hp Rated engine speed 2500 rpm Type Diesel Injection pump type High pressure common rail direct injection Aspiration Turbocharged Emissions compliance Final Tier 4 Cylinders/displacement 3 / 1.57 L 3 / 95.7 cu in. Number of cylinders Three Cylinder liners Cast-in-block Bore and stroke 86 x 90 m 3.4 x 3.54 in. Compression ratio 19.1:1 Lubrication Pressurized Cooling system Water Pump Air cleaner Dual element Engine torque at rated speed 104.7 Nm 77.2 lb-ft Fuel tank capacity 28.5 L 7.5 gal. Wheelbase 1593 mm 62.7 in. Front axle clearance Minimum: 299 mm 11.8 in. Maximum: 333 mm 13.1 in. Turning radius without brakes 2.
