Description

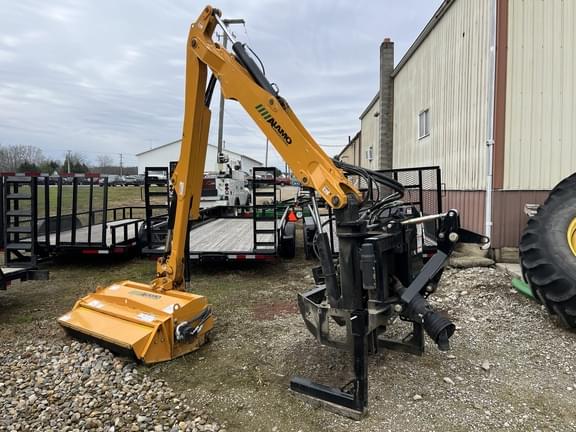

Tractor Requirement RM180: CAB; 65 PTO horsepower, 7,715 lbs shipping weight, 540 rpm PTO output shaft.It is the purpose of this specification to describe an 18’, rear-mounted, hydraulically powered boom mower for cutting grass and brush on roadsides and other areas that are not accessible to conventional mowing equipment. BASIC FEATURES ▪ 18’1” minimum horizontal reach. ▪ 22’4” minimum vertical reach. ▪ TBD minimum below grade reach. ▪ Two section articulated boom. ▪ 48” rotary cutting head (specifications listed separately). METHOD OF ATTACHMENT: The mainframe shall mount to the rear of the tractor utilizing a standard Category II three-point hitch. BOOM FEATURES & CAPABILITIES: Boom Movement: Standard boom functions shall include vertical lift, head tilt and dipper reach. A lift float kit featuring a nitrogen accumulator shall be included as standard equipment. All boom and/or cylinder pivot points shall be greaseable. Boom Cutting Heads: The manufacturer shall offer the following mowing heads for cutting grass and light brush up to 2” in diameter. • 48” Standard Duty Flail – Direct Drive- Super-Cut Shaft- Choice of F91- Y-Knives, Single Edge Cast, Forged Boot Flails • 48” Medium Duty Flail- Direct Drive- Multi-Cut Shaft- Choice of F10- Y-Knives, Single Edge Cast, Forged Boot Flails • 48” Light Duty Rotary- Single-Leaf Bar With Pan- Fan-Type Grass Blades – Direct Drive: 620 lbs. - Will Include Buzzer Kit to alert operator of boom arm contact with forward stop. • 60” Mediu
