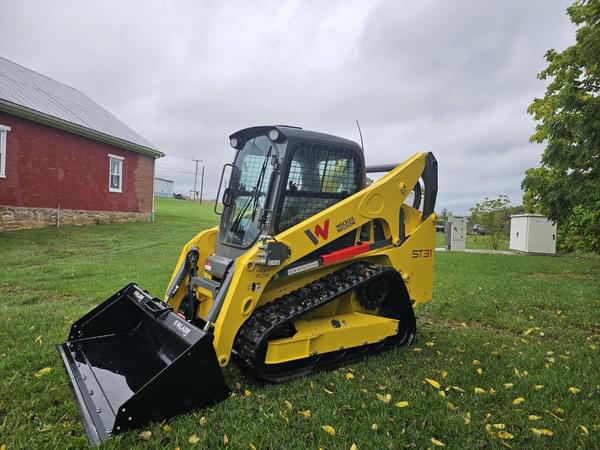

Estimate your 2026 Wacker Neuson ST31 payment

Description

Ground Pressure (standard track) 5.8 psi Break Out Force Bucket 5,611 lbf Break Out Force Lift Arm 5,546 lbf Tractive Effort max. at 100% effective force 9,873.6 lbf Bucket Roll Back 1.6 s Bucket Roll Out 2.1 s Lift Arm Raise 3.6 s Lift arm lower 2 s Travel speed stage 1 6.5 m/H Travel speed stage 2 9.7 m/H Overall Length without bucket 106.9 " Overall Length with Bucket 136.1 " Overall width without bucket 64 " Overall Width (Large Track) 67.1 " Overall height to top of ROPS 82.8 " Bucket Hinge Pin Height 128.5 " Bucket roll back at ground 30 ° Bucket roll back at maximum height 94 ° Angle of departure 33 ° Bucket dump height at maximum height 163.4 " Bucket dump angle at maximum height 40 ° Operating weight 8,240.9 lb Track width 12.6 " Track width (optional) 15.7 " Ground clearance 9.1 " Length of Track on Ground 56.7 " Dump reach at maximum height 38 " Cylinder 4 Cylinder capacity 151.5 Inch3 Operating power 73.8 hp Operating Engine speed 2,600 1/min Engine type Diesel engine Engine Manufacturer Kohler Flow rate 20.1 gal/mi Flow rate max. 29.9 gal/mi Auxiliary relief pressure 3,480 psi Tip Load 6,199.4 lb Rated Operating Capacity at 50% Tip Load 3,099.7 lb Rated Operating Capacity at 35% Tip Load 2,169.4 lb
