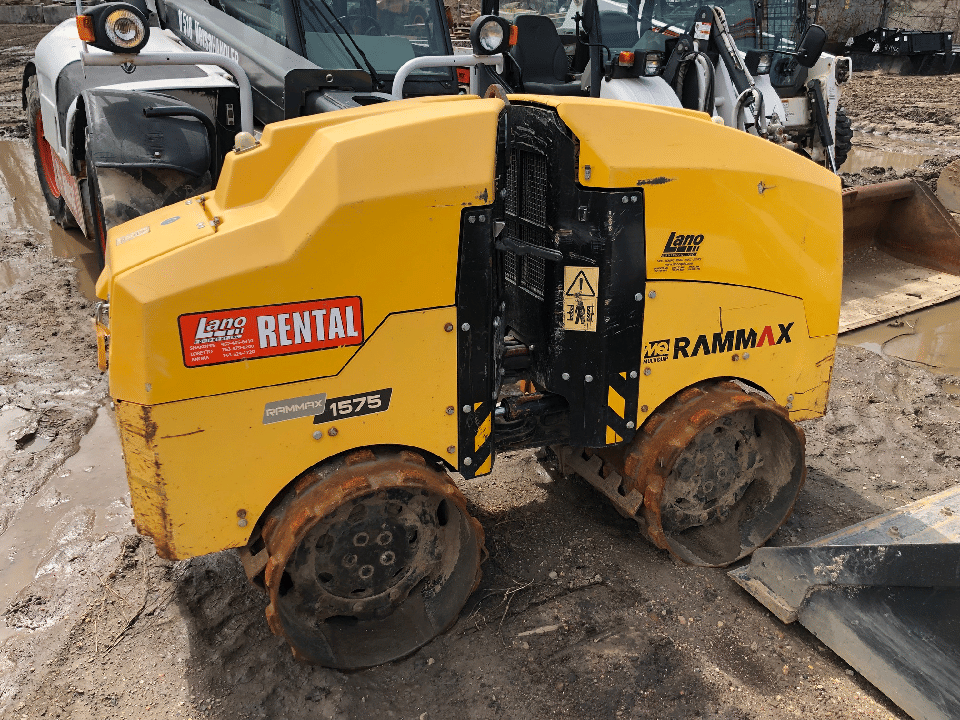

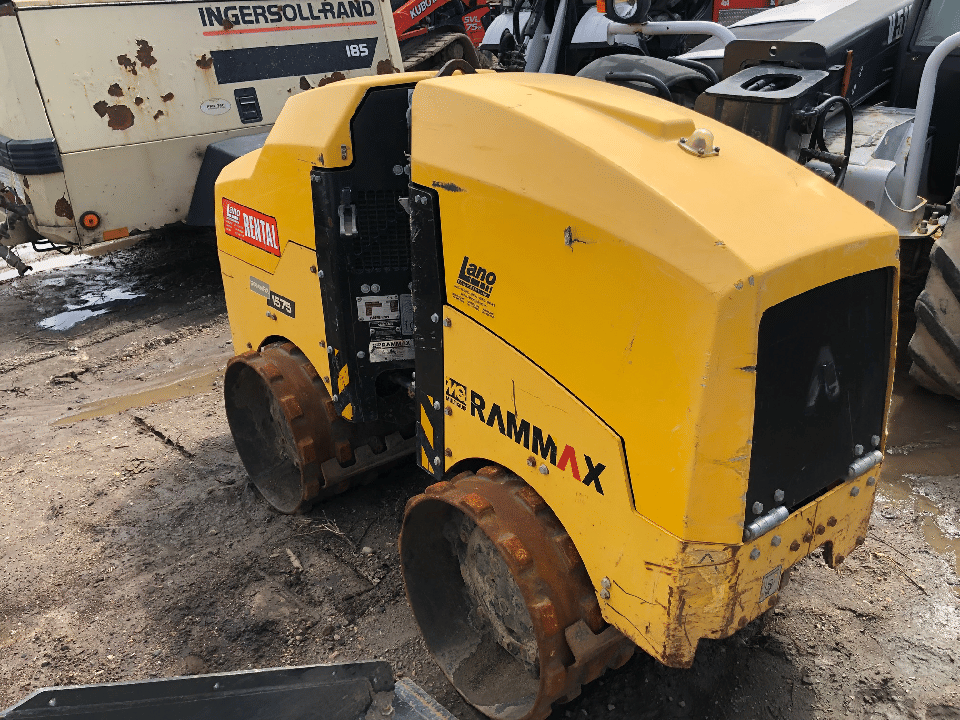

2014 Multiquip Rammax 1575

Description

MULTIQUIP ARTICULATING TRENCH ROLLER 33 DRUM 2014 Multiquip RX1575R Articulating Trench Roller Specs Model Information Model: RX1575R Year: 2014 Manufacturer: Multiquip (Rammax) Type: Articulating Vibratory Trench Roller Remote-Controlled Operation Designed for trench compaction, utility work, pipeline installation, and road construction Engine Engine: Yanmar 3TNV76 Diesel Engine Type: 3-Cylinder, Liquid-Cooled Gross Horsepower: 20.4 hp Rated Engine Speed: 2,400 rpm Tier 4 Compliant Diesel Engine Fuel-Efficient Design Compaction Performance High Centrifugal Force: 16,860 lb (75 kN) Low Centrifugal Force: 8,430 lb (37.5 kN) Vibration Frequency: 2,460 VPM (41 Hz) Dual-Amplitude Vibratory System High and Low Compaction Settings for Various Soil Conditions Drums Padfoot (Sheepsfoot) Drums Standard Drum Width: 24 in Optional Drum Width with Removable Rings: 33 in Four Drum Scrapers Oscillating Articulation Joint Maintains Constant Drum Contact Operating Weight Operating Weight (24 in Drums): 3,087 lb Operating Weight (33 in Drums): 3,197 lb Dimensions Overall Length: 78 in Overall Width: 24 in (33 in with drum rings) Overall Height: 52 in Compact design for narrow trenches and confined job sites Drive System Hydrostatic Drive Articulating Steering Oscillating Center Joint Maximum Gradeability: 40% with vibration 50% without vibration High Travel Speed: 148 ft/min Low Travel Speed: 82 ft/min Remote Control Wireless Infrared Remote Control Operating Range: Up to 65 ft Solar-Assisted
