2024 CMP Attachments HG142

Description

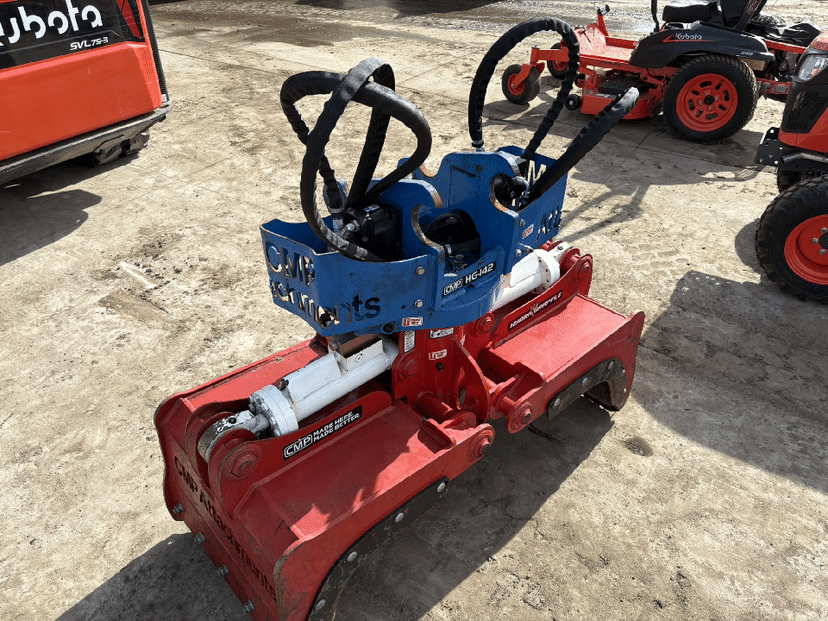

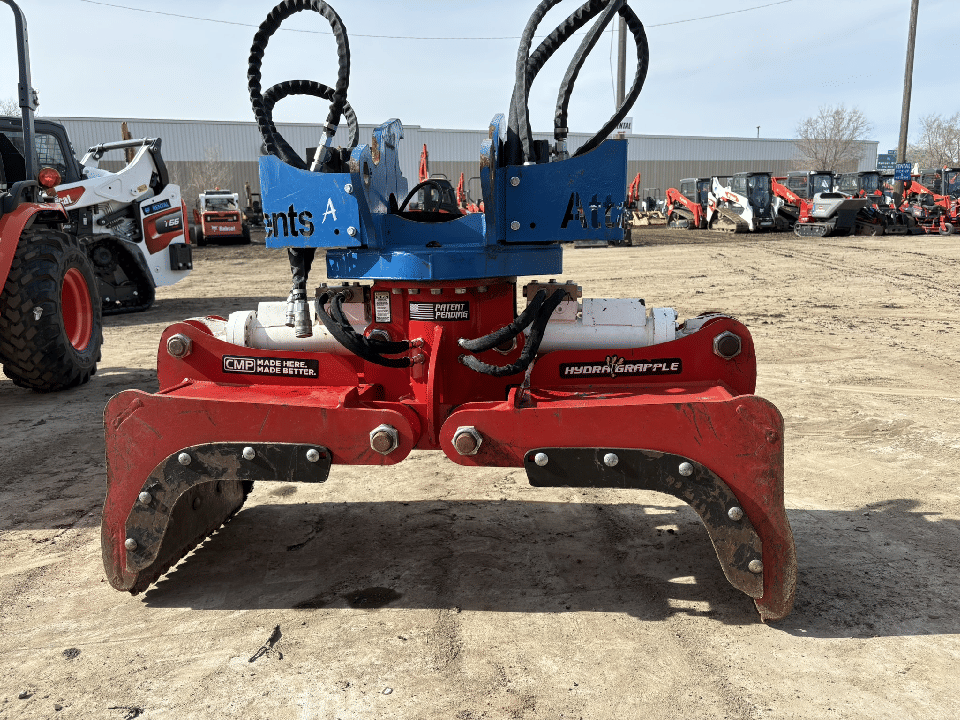

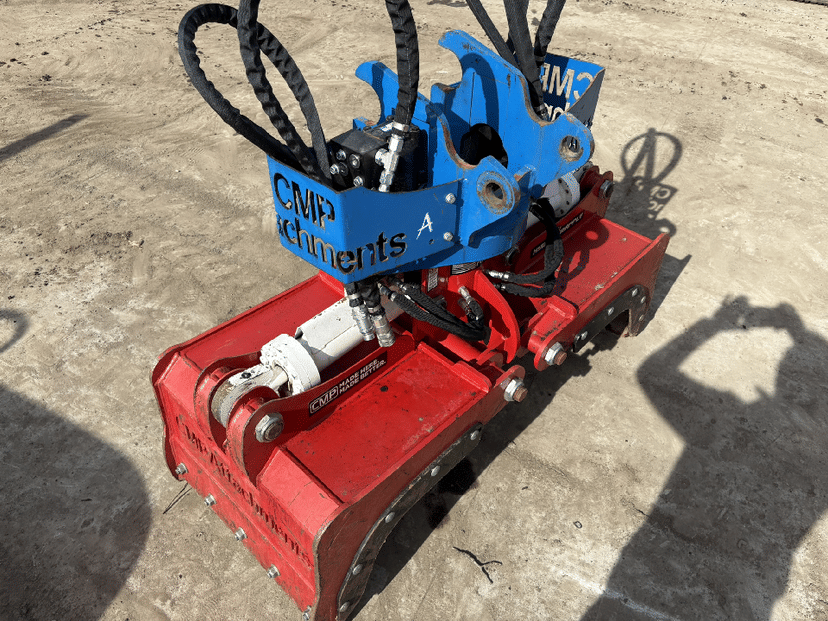

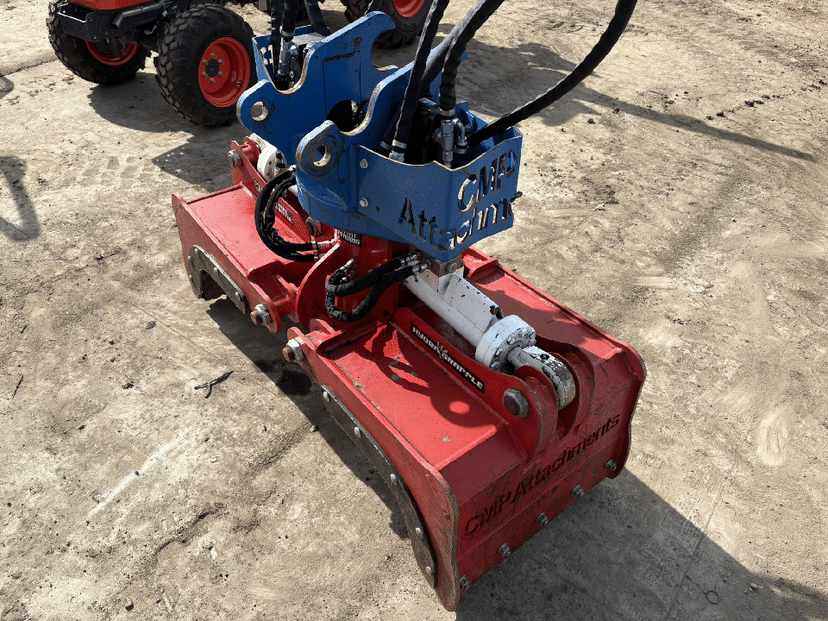

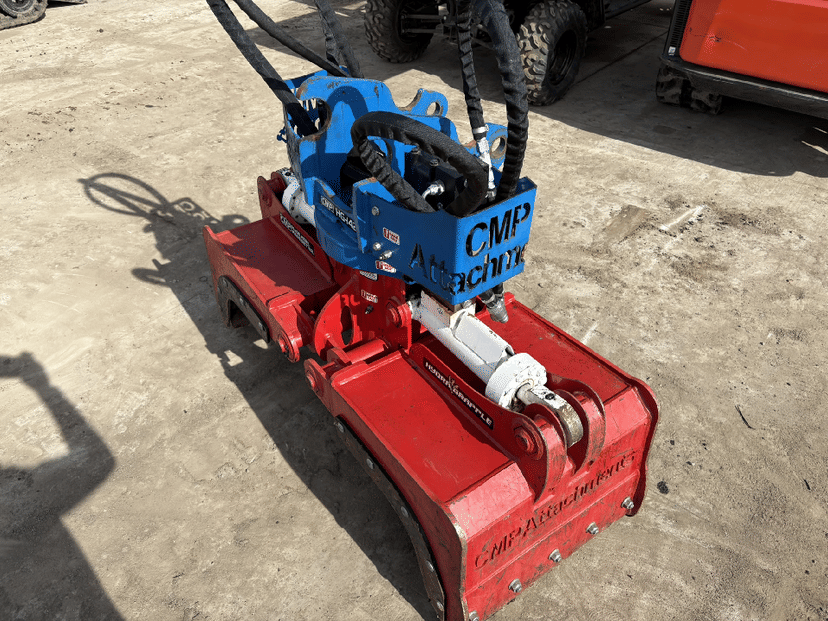

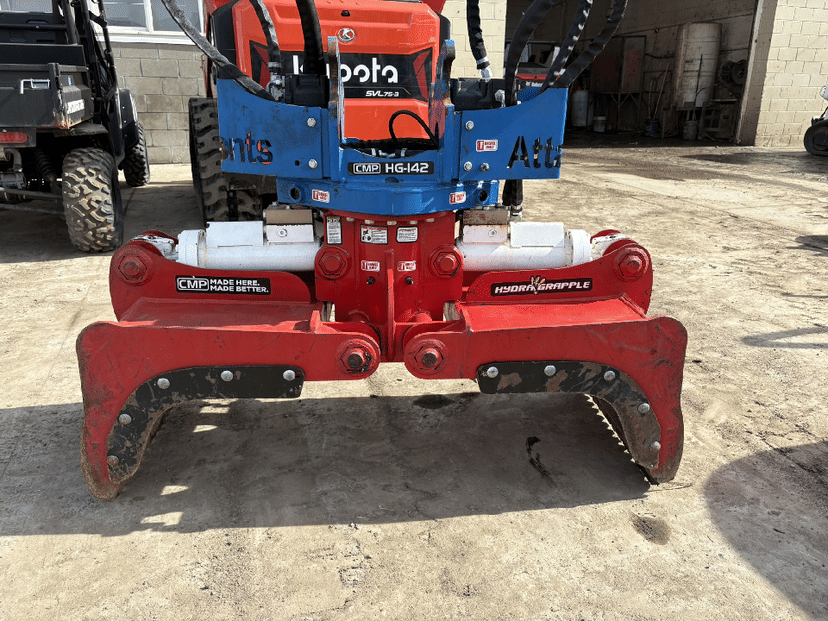

CMP HG142 ROTATING GRAPPLE,KX057 CMP HG142 Rotary Excavator Hydra Grapple Specs Model: HG142 Manufacturer: CMP Attachments Type: Hydraulic Rotating Excavator Grapple Application: Land clearing, log handling, demolition, rock placement, brush removal, and material sorting Compatibility: Fits Kubota KX057 , U55, CAT 305/306, Bobcat E55/E60, and similar 11,000-16,000 lb excavators Dimensions & Weight Grapple Width: 23 in Maximum Grapple Opening: 54 in Minimum Closed Width: 13.5 in Volume Opened: 12.5 cu ft Volume Closed: 6 cu ft Bearing Size: 12 in Approximate Weight: 895-995 lb Designed for excavators in the 5-8 ton class Grapple Performance Large 54" opening for handling logs, brush, boulders, and demolition debris High clamping force for secure material retention Excellent visibility for precise material placement Narrow jaw profile allows accurate picking and sorting Ideal for forestry, demolition, excavation, and construction applications Hydraulic System Dual high-torque rotation motors 360 degrees continuous rotation Dual hydraulic clamping cylinders Hydraulic lock valves maintain clamping pressure without constant hydraulic flow Optional electronic diverter valve available for simplified hydraulic hookup Rotation & Clamping Features 360-degree continuous grapple rotation Maximum Rotational Torque: 15,000 in-lb Dual-motor design provides exceptional rotational power Built-in cross-relief protection cushions rotation stops under load Standard lock valves improve load reten
