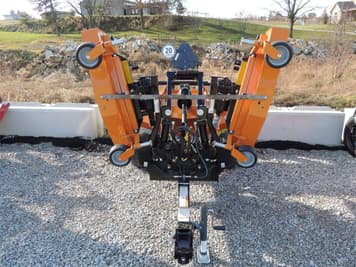

2024 Woods TBW12.20

Description

***OUT OF STOCK*** Brand New 12' Turf Batwing Cutter!! -- Rated Best in Cut Quality by an Independent Study! -- Promotional Financing Available! New Woods TBW12.20 Turf Batwing Finish Mower -540 Tractor PTO Speed (rpm) -25 to 60 Tractor PTO HP Range -2051 Shipping Weight (lbs) -CAT 1 Drawbar Hitch -144" Cutting Width -1.5" to 4.5" Cutting Height -48" Wing Deck Cut Width -60" Center Deck Cut Width -6" Deck Overlap -147" Overall Width -141" Max Overall Length -91" Transport Width -135" Transport Length -100 Hp Splitter Gearbox -18,000 Fpm Blade Tip Speed -Gearbox over V-belt Drive -CAT 3 CV Input Driveline -CAT 3 Wing Drivelines -2 Transport Tires, 20.5 x 8-10 -10 Solid Caster Wheels 8 x 3.5 -3x10 Single Acting Wing Deck Lift Cylinders -3x8 Single Acting Center Deck Lift Cylinders -4"x4"x.25" Square Tube Trailer Frame Construction -10 Gauge Deck Thickness -9 Ductile Iron Blade Spindles , Lubed for Life -6 Blades, Dimensions = .25 x 2.5 x 17.0, (3) .25 x 2.5 x 20.8 (in) -Floating Clevis, Multi-Position Hitch Adjustment -Automatic Transport Lock, Manual Release -Transport Tires are Non-highway speed-rated -Caster Spacers for Cut Height Adjustment -B-section, Kevlar® Belt Construction -Spring Loaded Idler for Belt Adjustment -Rear Chain Shielding is Optional & NOT INCLUDED in Listed Price -Anti-Scalp Rollers are Optional & NOT INCLUDED in Listed Price -Light Kit is Optional & NOT INCLUDED in Listed Price -Hydraulic W
