Make
Kubota
Model
U17-5
Category
Construction
Subcategory
Compact Excavators
Stock No.
1160062
City
Lithonia
State
GA
Condition
New
Hours
1 Hrs

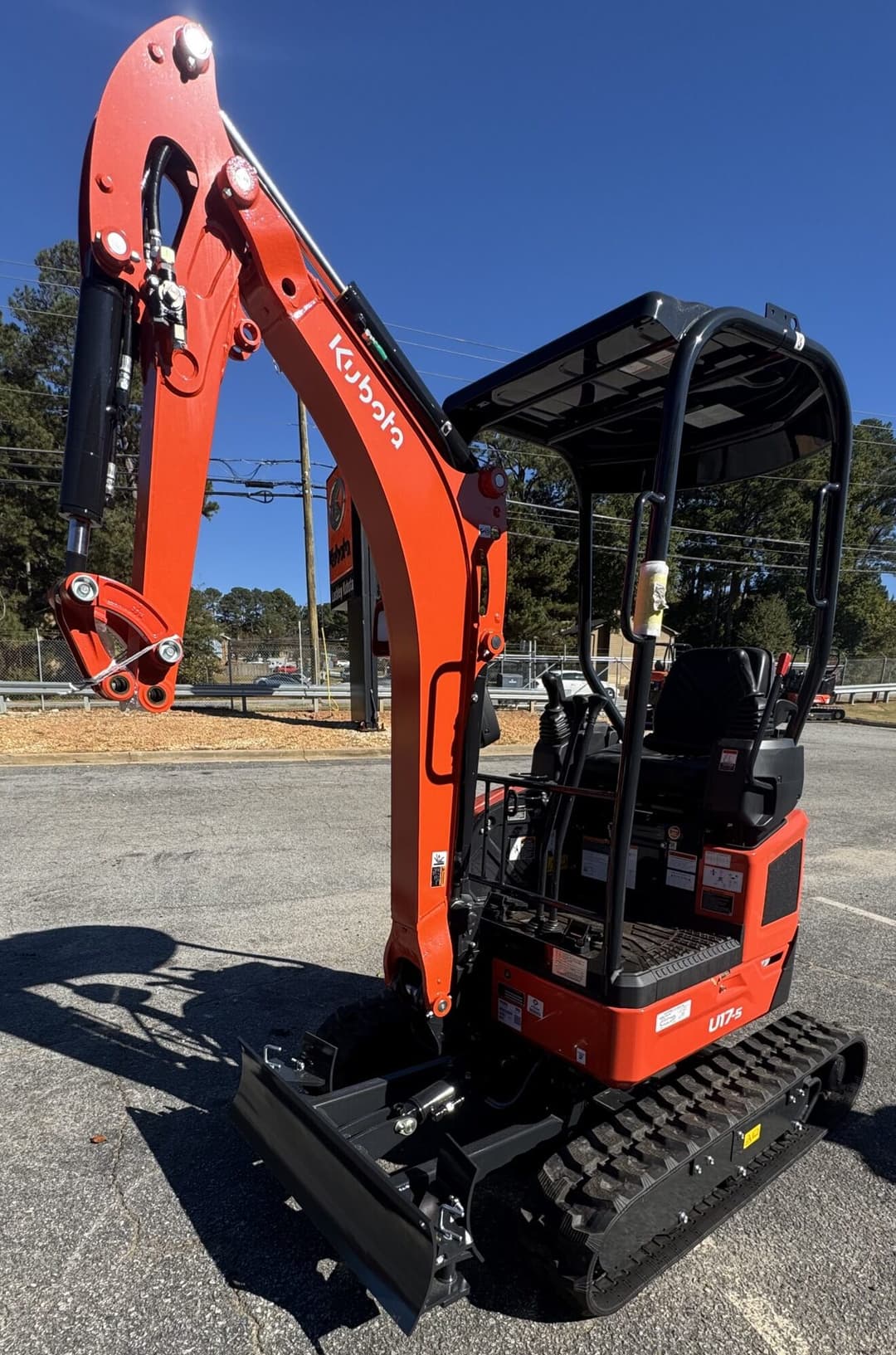

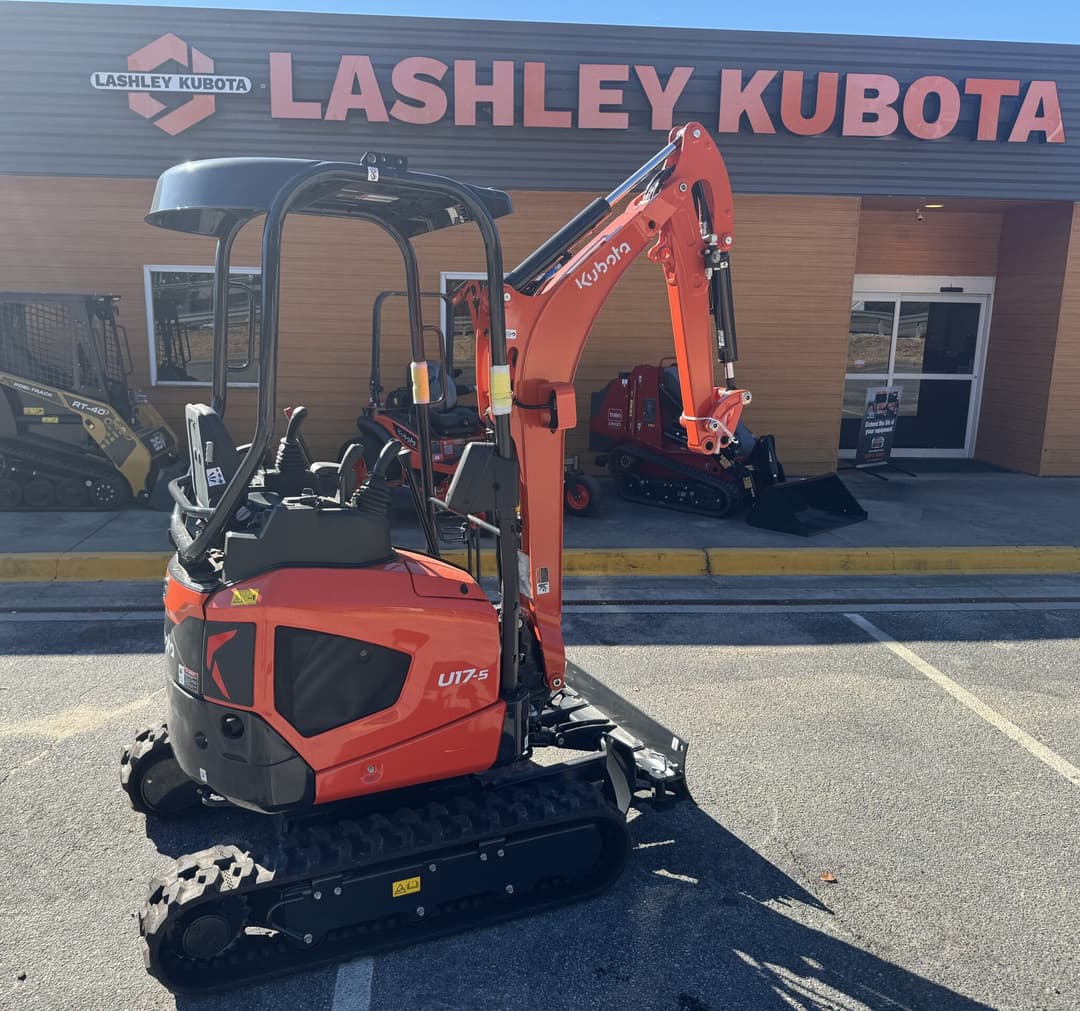

**Price listed as Cash Price. Financing Options are available** The Kubota U17 mini excavator features a 16.1 HP engine, zero tail swing, and a variable track width that can be adjusted from 39 inches to 51 inches (3' 3" to 4' 1") for versatility in confined spaces. It has an operating weight of approximately 3,700–3,814 lbs, a max digging depth of 7 ft 7 in, and a max dump height of 8 ft. The machine also includes a two-speed travel system and a Two-Pattern Selection System (TPSS) for switching between ISO and SAE operating patterns. Specifications: Engine and performance Engine: Kubota D902-E4 diesel Horsepower: 16.1 HP (gross) Bucket breakout force: 3,417–3,420 lbs Travel speed: Up to 2.5 mph (low range: 1.4 mph, high range: 2.6 mph) Dimensions and weight Operating weight: Approximately 3,700–3,814 lbs Max digging depth: 7 ft 7 in Max digging height: 11 ft 7 in Max dump height: 8 ft Overall height: 7 ft 8 in Track width (variable): 39 in–51 in (3 ft 3 in–4 ft 1 in) Key features Zero tail swing: The body does not extend beyond the tracks when swinging, allowing for work in tight spaces. Variable track width: The tracks can be hydraulically widened for stability or narrowed for navigation in tight areas. Two-Pattern Selection System (TPSS): A lever allows the operator to switch between ISO and SAE control patterns. Two-speed travel: A switch on the dozer lever provides faster dozing and travel speeds. Boom swing: The boom can pivot left and right, with a boom swing angle of
